วินซ์ไฟฟ้า 12000 ปอนด์ Top Speed Electric Winch 12000lb 24v Gen2 รถยก รถสไลด์ รถoff road
วินซ์ไฟฟ้า 12000 ปอนด์ Top Speed Electric Winch 12000lb 24v Gen2 รถยก รถสไลด์ รถoff road
12000lb (5454kgs) 24V steelrope Gen2
฿15,000

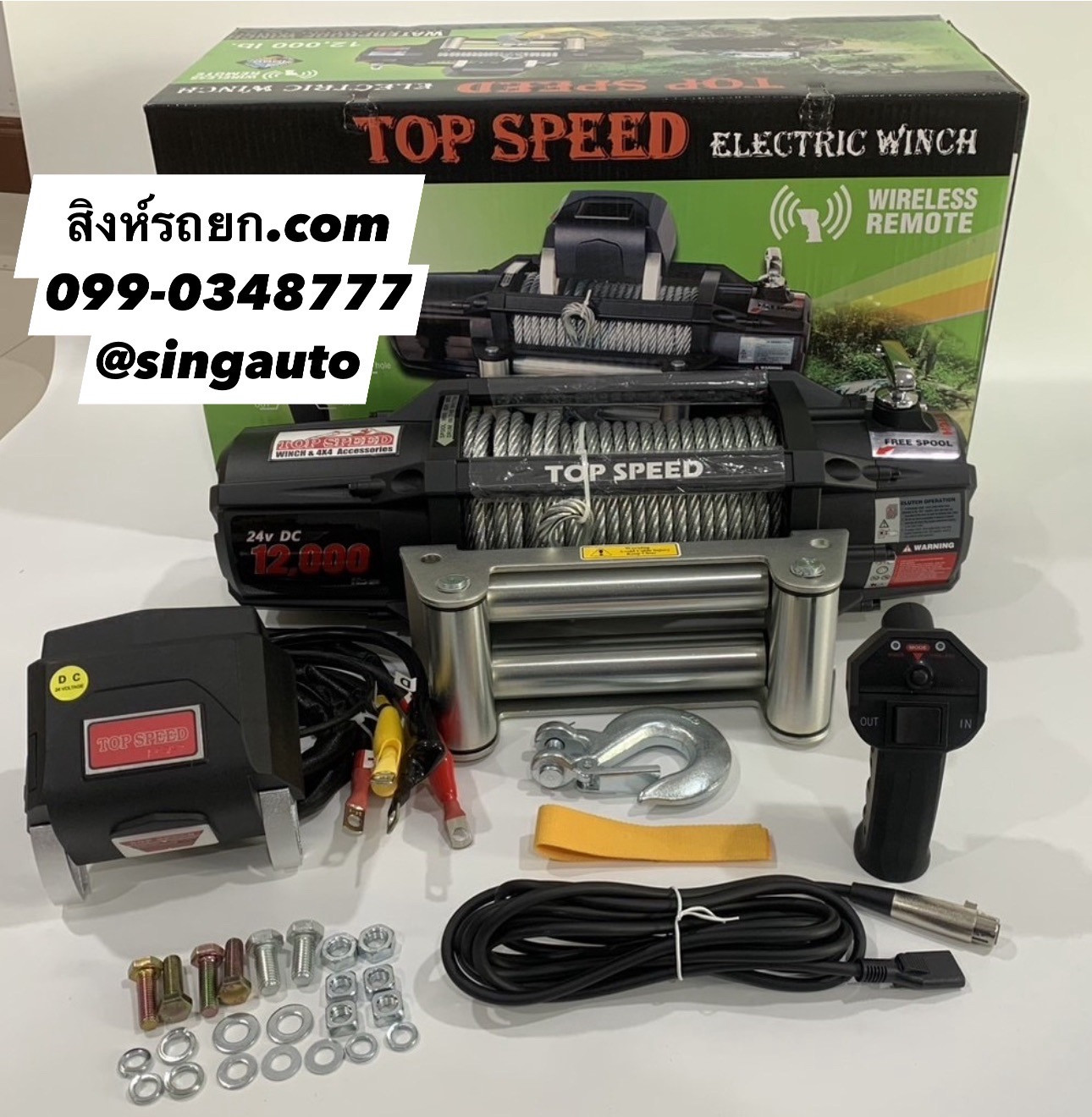

Top Speed Electric Winch
12000lb (5454kgs) 24V with steel rope – Gen2
รอกไฟฟ้าขนาด 12000lb (5454kgs) 24v แบบสลิง – Gen2
G.W. 40.65 Kgs.
Carton size: 61 x 35 x 26 cms.
Specification 12000lb
Waterproof: IP68 Rating
Rated Max Line Pull: 12000lbs (5454kgs) Single line
Motor: 6.5hp Series Wound
Control: Remote Switch, 12’ (3.7m) lead
Gear Train: 3-Stage Planetary
Gear Ratio: 265:1
Clutch: Sliding Ring Gear
Brake: Automatic Out-Of-Drum
Drum Size: Diameter 2.5” (63mm) x Length 10.0” (254mm)
Fairlead: 4-way Roller
Remote Control: Integrated wireless and wired remote Included
Recommended Battery: 650CCA Minimum for Winching
Battery Leads: 25mm2 x 72” (1.83m)
Weight: 99.0lbs (45kgs)
Mounting Bolt Pattern: 10.0” (254mm) x 4.50” (114mm)
Overall Dimension: L22.3” x W5.4” x H9.4”
Cable: 26m x 9.5mm Diameter
Mounting Bolt Pattern: 254mm x 114.3mm
